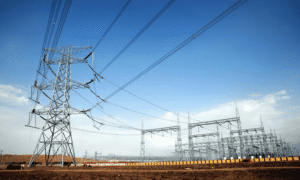

Distribution network and terminal automation
Extend high-precision time signals to ring network cabinets, column switches, smart meters, and edge sites to enhance fault location and non-intrusive detection capabilities.
Power & Energy Solutions
Power and Energy
Constructing a trusted time-frequency infrastructure to guarantee the stable operation and wide-area synergy of smart grids
In digital power system, millisecond error may bring about misjudgment of the whole network trend, and time-frequency synchronization has become the cornerstone of the safe operation of the new power system. BeiDou Bontec provides multi-protocol synchronization technology based on BeiDou/GNSS, PTP (IEEE 1588), IRIG-B, 1PPS, 10 MHz and other protocols to build a high-precision and high-availability timing system, which can satisfy the requirements of power generation, substation, transmission and distribution, dispatching center, and power terminals in terms of time accuracy, stability, and security, and help the energy system advance towards intelligence, cleanliness, and distribution. We will help the energy system to move forward to intelligent, clean and distributed.
Power & Energy Segmented Application Scenarios

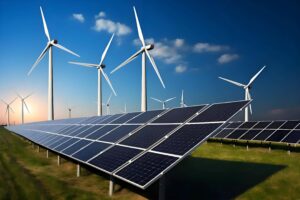

Synchronization of new energy grid connection with microgrid
Supports the time control requirements of wind power, photovoltaic, and battery storage systems in scenarios such as precise grid connection, synchronized back-feeding, and island switching.

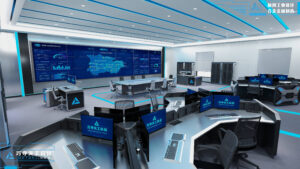

Wide Area Movement Control Center (WAMCC)
It builds a master and backup clock architecture, unifies the scheduling time scale, guarantees the time consistency of cross-regional linkage of SCADA and EMS systems, and meets the time deviation constraints of the South China Network and the State Grid.

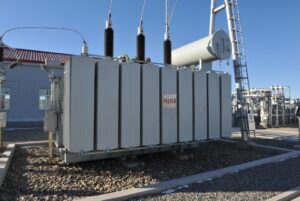

Substation time harmonization system
Provide station timing center, infrared/digital clock, IED device synchronization function, support PTP+IRIG-B redundancy mode, in line with DL/T634, DL/T860 and other standards.

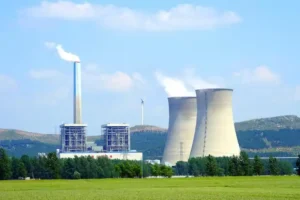

Power Plant and Power Side Timing
Provide nanosecond time reference for synchronous phase measurement unit (PMU), fault recording device (FR), protection measurement and control device, etc. to support frequency control and power quality analysis.
Key Technology Highlights
- IEEE 1588v2 (PTP) + IRIG-B multiplexing architecture: supports one master, multiple slaves, transparent clock, boundary clock mode, meets millisecond to microsecond synchronization requirements
- Rubidium/thermocrystal taming technology: Supports Holdover output in GNSS lost-lock state, ensuring high stability timing even under broken link conditions.
- Compliance with electric power industry specifications: support interface definition and deviation requirements of DL/T634, DL/T860, Q/GDW, IEC61850-9-3 and other standards
- Redundant architecture support: dual inputs, dual outputs, dual master clocks, automatic master and backup switching to meet the high availability requirements of the scheduling center and core sites
- Visualization of time-frequency status monitoring: Provide Web management interface, remote alarm, deviation trend analysis, and broken chain traceability.
- Supports multiple interface protocols: NTP, PTP, IRIG-B (DC/AM), 1PPS, 10MHz, TOD and other full-standard interface outputs
- Anti-jamming and spoofing detection mechanism: embedded satellite jamming/spoofing protection module to ensure reliable and trustworthy time source
Products for Power & Energy Applications
T840 Carrier-Grade Clock Server
Next-generation telecommunications networks and critical infrastructure demand higher accuracy, stability, and scalability in time synchronization. The T840 is a carrier-grade, enhanced grandmaster clock platform that integrates ePRTC, PRTC, SSU, and IEEE 1588v2 grandmaster clock functionality. It supports PTP, NTP, SyncE, and multiple interface protocols, including BITS, IRIG-B, 1PPS, and 10MHz. The T840 features a modular design, synchronization monitoring, and interference mitigation capabilities, allowing for flexible deployment in the core network, aggregation layer, or edge nodes. Combined with built-in Syncprobe™ technology and a multi-source holdover algorithm, the T840 is the most reliable timing investment platform for the transition from traditional to IP networks.
T830 high-performance Clock server
Critical infrastructure demands high-precision, secure, and reliable time synchronization. The T830 is an enhanced grandmaster clock platform compliant with the IEEE® 1588 standard, designed for time-critical applications in industries such as finance, high-frequency trading, computing centers, and military communications. The T830 supports multiple timing modes, including ePRTC, PRTC, PTP, NTP, SyncE, and IRIG-B, and features robust interference detection and anti-spoofing capabilities, ensuring the continuous and stable operation of critical systems in complex network environments.
Watch our video about the T830 series.
