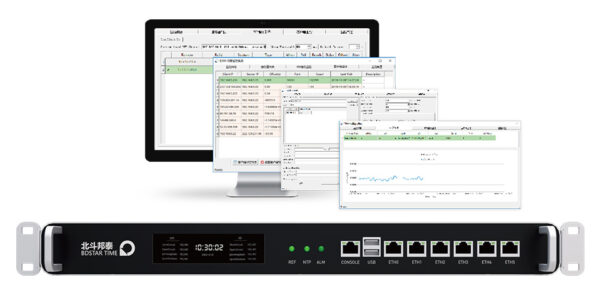

T680 PTP/NTP Time Synchronization Server
Learn about our T680 PTP/NTP Time Synchronization Server
Modern distributed systems and network architectures place higher demands on high-precision time synchronization. The T680 is a high-performance time synchronization server that integrates PTP and NTP functionality. It supports full GNSS system reception and local clock discipline, features built-in anti-interference detection algorithms, and is compatible with IPv6 and domestic operating systems. Its flexible deployment options, diverse output interfaces, and precise synchronization performance enable it to provide stable, secure, and accurate time services in key sectors such as telecommunications, finance, power generation, and scientific research, meeting current and future high-availability requirements for time synchronization.
Important Features
- Supports NTP + PTP protocols, compatible with mixed network environments, and does not require additional hardware support
- Customer synchronization accuracy better than 20 nanoseconds for demanding industry clock requirements
- Supports full GNSS (GPS, Beidou, Galileo, GLONASS) to enhance positioning anti-interference capabilities
- Built-in high-performance oven-controlled crystal oscillator (OCXO), with 24-hour stability better than 5μs
- Supports 1PPS + TOD, IRIG-B, GPIO, and PTP signal input
- Supports multiple clock models (Master-Slave, BC, OC, TC) to adapt to different deployment scenarios
- Optional 1G/10G/40G network ports, supporting link aggregation (bonding) and heartbeat monitoring functions
- All network ports support both PTP and NTP, and support transparent communication in common switching networks
- Equipped with DoS protection and advanced fraud detection algorithms to ensure safe and stable network operation
- Compatible with IPv4 and IPv6 network protocols, adaptable to various modern network architectures
- Support PTP clock priority mechanism and customize master clock priority strategy
- Support frequency output options (5 / 10 / 20 / 25 MHz) to meet the needs of frequency standard interface
- Equipped with independently developed NTP/PTP service monitoring software to achieve visual management of accuracy status
- Supports delay measurement mode, point-to-point and end-to-end timing link analysis
- Optional trusted hardware and systems
The time foundation for building a trusted network
As digital infrastructure rapidly evolves, time is not only a reference for network operations but also the core foundation for the secure and controllable operation of critical systems. The T600 Trusted Time Server integrates high-precision timing capabilities with multi-layered security mechanisms to build a unified, trusted, and auditable time service platform, becoming the "trusted time foundation" of modern network systems.
Product Highlights
High-performance multi-system GNSS timing reception optional
This high-performance, multi-system GNSS timing receiver module supports GPS, GLONASS, Galileo, and BeiDou systems. Designed for precise timing, it supports time pulse (1PPS) output and clock synchronization applications. It features fast lock-on, high anti-interference performance, and nanosecond-level timing accuracy.
Support hardware-level security module
Supports the national encryption SM2/SM3/SM4 algorithms and secure boot mechanism to strengthen the trusted protection of time sources. It can integrate USB Key hardware encryption modules and supports SSH, HTTPS, and REST API authentication mechanisms to adapt to zero-trust network requirements.
Comprehensive REST API interface support
The T600 series time servers offer a comprehensive REST API interface, compliant with the industry-standard OpenAPI 3.0 specification. This interface supports programmatic access, control, and monitoring of device status via HTTPS. Developers can easily integrate the system using standard JSON requests, from automated management of NTP/PTP configuration parameters to real-time access to timing channels, interface status, and alarm events.
Keep performance selected
T680 提供多种高可靠性的保持性能配置，适用于关键基础设施在 GNSS 信号丢失或受干扰环境下的持续运行需求。支持包括高稳定度恒温晶振（OCXO）、增强型振荡器、以及可选原子钟（Rubidium）在内的保持时间模块，可在 GNSS 信号中断情况下，确保系统依然维持优异的时间精度。
Secure and accurate time under zero-trust architecture
T680 高精度时间服务器可作为企业“可信时间基座”，在零信任架构下提供安全、可验证、可审计的时间保障。
通过集成北斗可信源、高稳本振与精细化安全控制机制，T680 满足零信任架构中的核心支柱要求，包括用户身份、设备接入、网络边界与行为分析，为各类数据操作提供准确、可信、可回溯的时间支撑。
