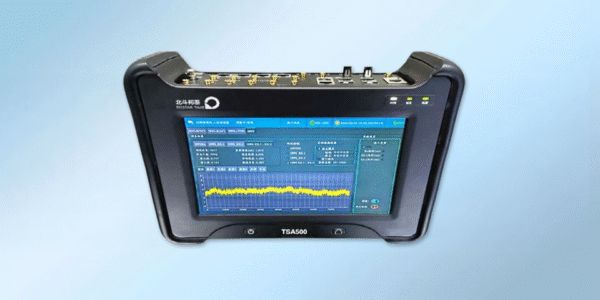

TSA500 Time Synchronization Analyzer

Time synchronization analyzer

The TSA500 Time Synchronization Analyzer is a portable test terminal that integrates multiple functions, including high-precision time code testing, high-precision frequency stability measurement, time/clock source analysis, and time-frequency signal output. Complying with relevant international and Chinese industry standards such as ITU-I, IEEE, and EIA, it is widely used in time and frequency signal testing applications in communications, power generation, rail transit, the military, research institutes, and measurement units.
Applications: Metrology departments, defense, power generation, research institutes, time and frequency companies, and universities.

Important Features

Highly stable industrial computer platform, portable design
10-inch TFT color screen touch operation, intelligent human-machine interface
Support manual, automatic and timed testing modes
Test data can be exported via Ethernet or USB interface
Supports PPX, TOD, IRIG-B, DCF77, DCLS and other time code measurements
Support G.7 032.048MHz/2.048Mb/s, SyncE clock analysis

System Block Diagram

Important Features

Classification	Index
High-precision time and frequency reference source	Can receive Beidou/GPS satellite time, 1PPS+TOD, IRIG-B and other time references
	Support PTP timing and positioning (optional)
	Support external frequency source (10MHz) as test benchmark
	Built-in high-stability rubidium atomic clock, supporting second-by-second scheduling and adjustment service capabilities
Frequency measurement (optional)	Supports real-time measurement of 10MHz signals, and optional real-time measurement of 1MHz~100MHz frequency accuracy and stability.
	Frequency accuracy test accuracy: 1E-12@1000s
	Frequency stability test accuracy: 5E-12/1S, 8E-13/10S, 2.0E-13/100S
	Supports simultaneous measurement of 2 frequency signals
Timecode measurement	Supports 1PPS/1PPX, 1PPS+TOD, IRIG-B (AC optional), IRIG-B (DC), serial time interface, DCF77, DCLS and other time codes, pulse test
	Supports optical, electrical B code and optical pulse testing
	Time interval and pulse signal test resolution: 40ps
	Support external 3-channel 1PPS time difference measurement, two-channel mutual comparison function
	Optional support for up to 7-channel 1PPS testing (optional)
Clock measurement and analysis	Supports G.703 2.048MHz/2.048Mb/s, SyncE clock analysis
	Supports clock TIE, MTIE, TDEV, and ADEV measurement and calculation, and performs comparison and in-depth analysis according to templates such as G.811, G.812, G.813, G.823, and G.8261
	E1 jitter test (transmit/receive), drift transmission, bit error test (measurement/insertion) (optional)
Network latency measurement	Supports NTP (SNTP, v2, v3, v4 and MD5) hard time stamp test and response capability test. Supports PTP (1588v2), and the interface can be flexibly configured in various modes, suitable for the construction of multiple test models
	Support 10G (optional), 1000M, 100M, 10M network environment
	Supports PDV (optional) and other tests, which can count, analyze and save timestamp data in real time, facilitating rapid fault location and abnormal analysis.
	NTP measurement accuracy is better than 50ns
	PTP measurement accuracy better than 8ns
Oscilloscope	Supports waveform testing such as pulse amplitude, duty cycle, and period
	Support trigger sampling, automatic and manual measurement functions
Special/high-precision testing (optional)	High-precision BeiDou/GPS satellite common view remote measurement with measurement accuracy better than 3ns
	High-precision single-point positioning technology for remote measurement, with measurement accuracy better than 1ns
	High-precision fiber bidirectional comparison measurement, with measurement accuracy better than 100ps
	China Mobile OAM, interoperability and consistency industry tests
	Power time synchronization industry test
	Various rubidium clocks and crystal oscillator testing and calibration
Time-frequency signal output	Supports 1PPS/1 PPX, 1PPS+TOD, IRIG-B (AC optional), IRIG-B (DC), serial/network time correction, DCF77, NTP/SNTP, PTP (IEEE1588v2), DCLS, 10MHz, SyncE, 2.048MHz/2.048Mb/s and other time and frequency signals
	Time code output signal deviation: ±500ms, resolution 0.1ns
	Optional 1MHz~300MHz arbitrary frequency signal output (optional)
Data Export	USB and Ethernet port RJ45
Physical and environmental parameters
Instrument appearance	10-inch touch LCD screen, power button, home interface button
Dimensions (W×H×D)	316mm×251mm×90mm
Machine weight	＜3kg (time synchronization analyzer), ＜0.8kg (power adapter)
power supply	Power supply 19V4.7A DC charging
	Interface 3.5mm power connector (with indicator light)
Power consumption	≤40W
Battery	Continuous working time: 3.5~5 hours
