Deployment Guide for High Precision PTP Network Architecture

Deployment Guide for High Precision PTP Network Architecture

在为网络与系统管理员提供一份关于高精度PTP（Precision Time Protocol）网络架构的宏观指南。我们将介绍一个分层、可扩展的PTP同步模型，该模型由三个核心层次的设备组成：PTP Master Clock (Grandmaster),PTP Boundary Clock (Boundary Clock) cap (a poem) PTP slave clock (Slave Clock)The

Note: The intermediate levels are in addition to theBCBeyond that, there areTCThe

Understanding the roles of these three levels and how they work together is fundamental to the successful deployment of a robust, scalable, and highly accurate time synchronization network.

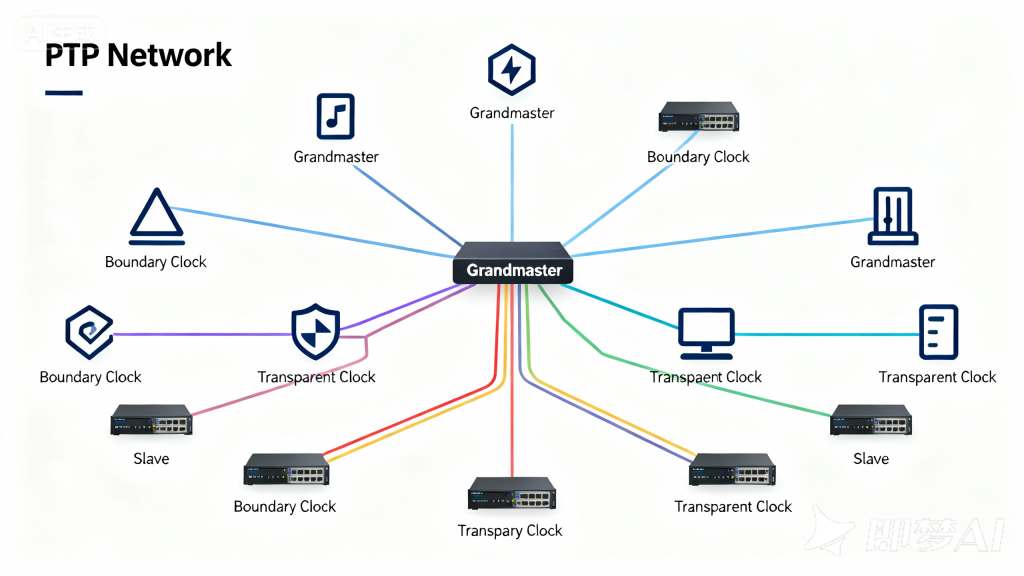

PTP网络的三层架构

An ideal PTP network usually consists of the following three levels, each of which plays an irreplaceable or alternative role.

Layer 1: PTP Master Clock (Grandmaster - GM)

  • Characterization:The "time heart" of the web, the ultimate time authority.
  • How it works:This is the entire PTP networkThe only source of time. It obtains the most accurate and authoritative UTC time through the built-in GNSS (e.g. BeiDou, GPS) receiver, which is directly aligned with the satellite's atomic clock.
  • Key Features:
    • Absolute authority:In PTP protocol elections, it is configured to have the highest priority (e.g., priority1=1), ensuring that it will always be the dominant player in the network.
    • Only in and out:It only gets the time (input) from the satellite and then provides the time (output) to the network, never bothering to synchronize other clocks in the network.
    • Stable and reliable:Usually specialized hardware devices designed to provide highly accurate time services 24/7.

Layer 2: PTP Boundary Clock (Boundary Clock - BC)

  • Characterization:Regional "time distribution centers", "relays and amplifiers" for networks.
  • How it works:Boundary clocks (usually high-end switches with PTP capabilities) play a dual role:
    1. To the upstream:It acts as aFrom Clock, accurately synchronizes the time of the Layer 1 master clock (GM).
    2. To the downstream:It serves itself again as amaster clockthat provides time services to all clients connected downstream of it.
  • Key Features:
    • Isolation and regeneration:It terminates PTP traffic from upstream and regenerates "clean" PTP messages for downstream distribution based on its own synchronized local high-precision clock. This greatly reduces the impact of network jitter on the end client.
    • Network Extender:It is key to building large, complex PTP networks. By deploying boundary clocks, PTP networks can easily span multiple physical regions.
    • Load Sharing:Spreading a large number of client synchronization requests across boundary clocks reduces the pressure on the master clock (GM).

Layer 3: PTP Slave Clock

  • Characterization:The "end consumer" of time, the business server that needs accurate time.
  • How it works:The slave clock (which can be any server, workstation, or device that needs accurate timing) is the simplest role in a PTP network. Its only task is:
    1. monitorThe PTP master clock in the network (may be a Layer 1 GM or a Layer 2 BC).
    2. lock (denying access to a computer system or device or files)Best master clock.
    3. synchronizationown local clock, which is calibrated on an ongoing basis.
  • Key Features:
    • Passive reception:It only receives time, it does not provide time services.
    • Application Driven:The ultimate goal is to provide accurate timestamps for the applications that run on them (e.g., financial transactions, industrial control, log analysis, etc.).

部署场景与使用模式

Depending on the size and accuracy requirements of your network, you can choose from different deployment modes.

Scenario 1: Two-tier Architecture (Master + Slave Clock)

  • Structure:The PTP master clock (GM) is directly connected to all PTP slave clocks through one or more common switches.
  • Applicable Scenarios:
    • Simple network environment with few switch layers, low and stable network load.

Scenario 2: Three Tier Architecture (Master Clock + Boundary Clock + Slave Clock)

  • Structure:The PTP master clock (GM) is connected to one or more PTP boundary clocks (BCs), which in turn are connected to PTP slave clocks in each network region.
  • Applicable Scenarios:
    • Recommended architecture for all production environments and medium to large networks.
    • There are a large number of PTP client devices in the network.

总结

Understanding and properly deploying this layered architecture is key to building a high-performance PTP network.

  • Main clock on the first floorIt's the root of trust.
  • Boundary clocks in the second layerIt is the backbone of network expansion and accuracy assurance.
  • Slave clocks on the third levelis the ultimate beneficiary of time served.

By choosing the appropriate architecture model according to your actual needs and ensuring that the roles of the devices at each level are clearly defined and the parameters are configured in a consistent manner, your PTP network will be able to provide high-precision time services in a long-term and stable manner.
