Precise Timing, Intelligent Collaboration -- Building Time and Frequency Infrastructure for Next-Generation Intelligent Transportation Systems

Beidou Bontec provides high-precision and high-reliability time synchronization and navigation and positioning solutions for the intelligent transportation field, covering intelligent networked vehicles (V2X), highway intelligent toll collection systems, high-speed railway communication and dispatching platforms and urban intelligent signal control. We build a safe and reliable time and frequency foundation through IEEE 1588v2 Precision Time Protocol (PTP), TSN deterministic network, anti-jamming GNSS positioning and combined navigation technologies. The product supports domestic software and hardware platforms to meet the demand for nanosecond synchronization and stable timekeeping for key applications such as automatic driving edge sensing, high-speed vehicle-road coordination, and unified scheduling of station control centers. Together with BDMonitor network-wide visualization platform, it realizes intelligent and distributed management of transportation infrastructure.

Typical Application Scenarios

High-speed rail scheduling and urban rail

Ensure the synchronization of signaling system through the unified time base, and adapt to the time coordination of GSM-R, TSN rail Ethernet and intelligent station control system.

Highway Tolling and Dispatch

Provide rubidium clock timing and multi-star fusion timing module, adapted to ETC roadside RSU and cloud control platform, supporting high-throughput charging, scheduling and tracking.

Intelligent Driving and Vehicle-Circuit Collaboration

Accurate synchronization of vehicle-end and road-end sensing units through PTP and TSN networks, adapting to V2X communication systems, edge computing gateways and autonomous driving controllers.

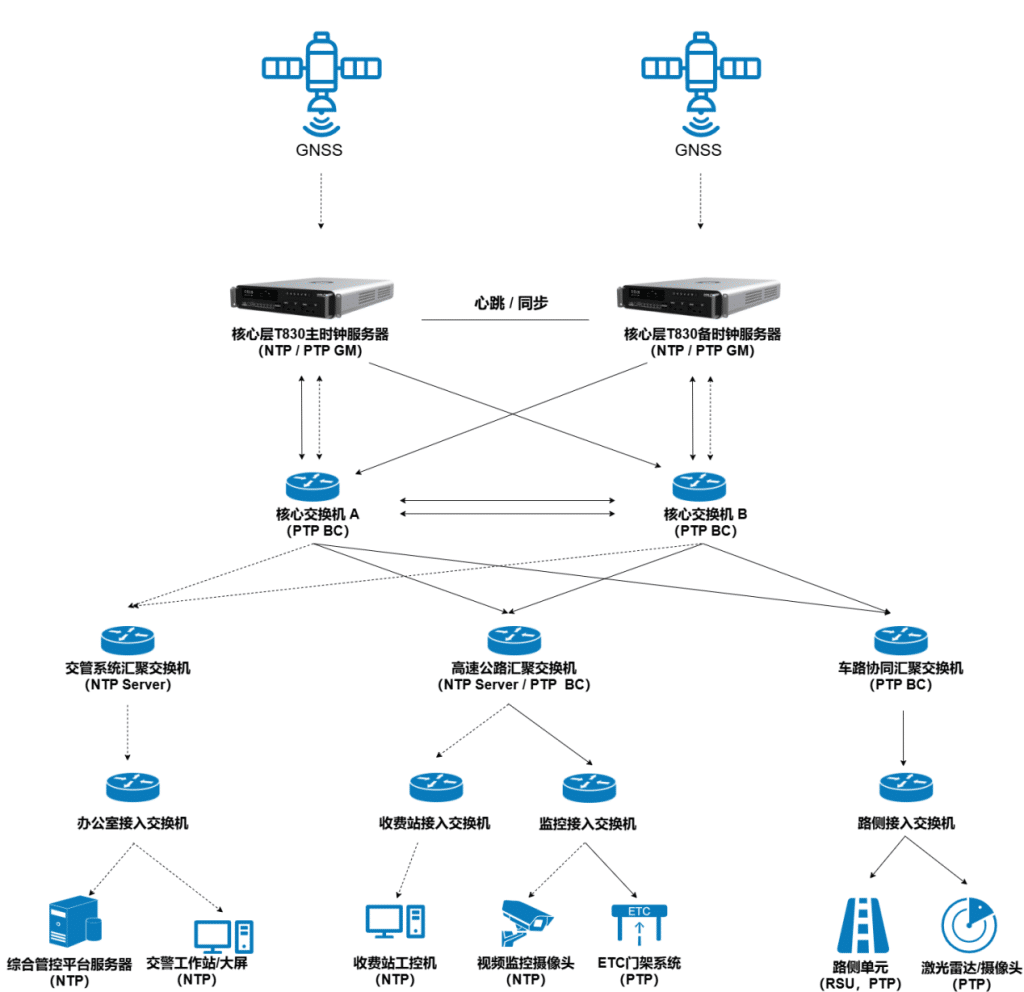

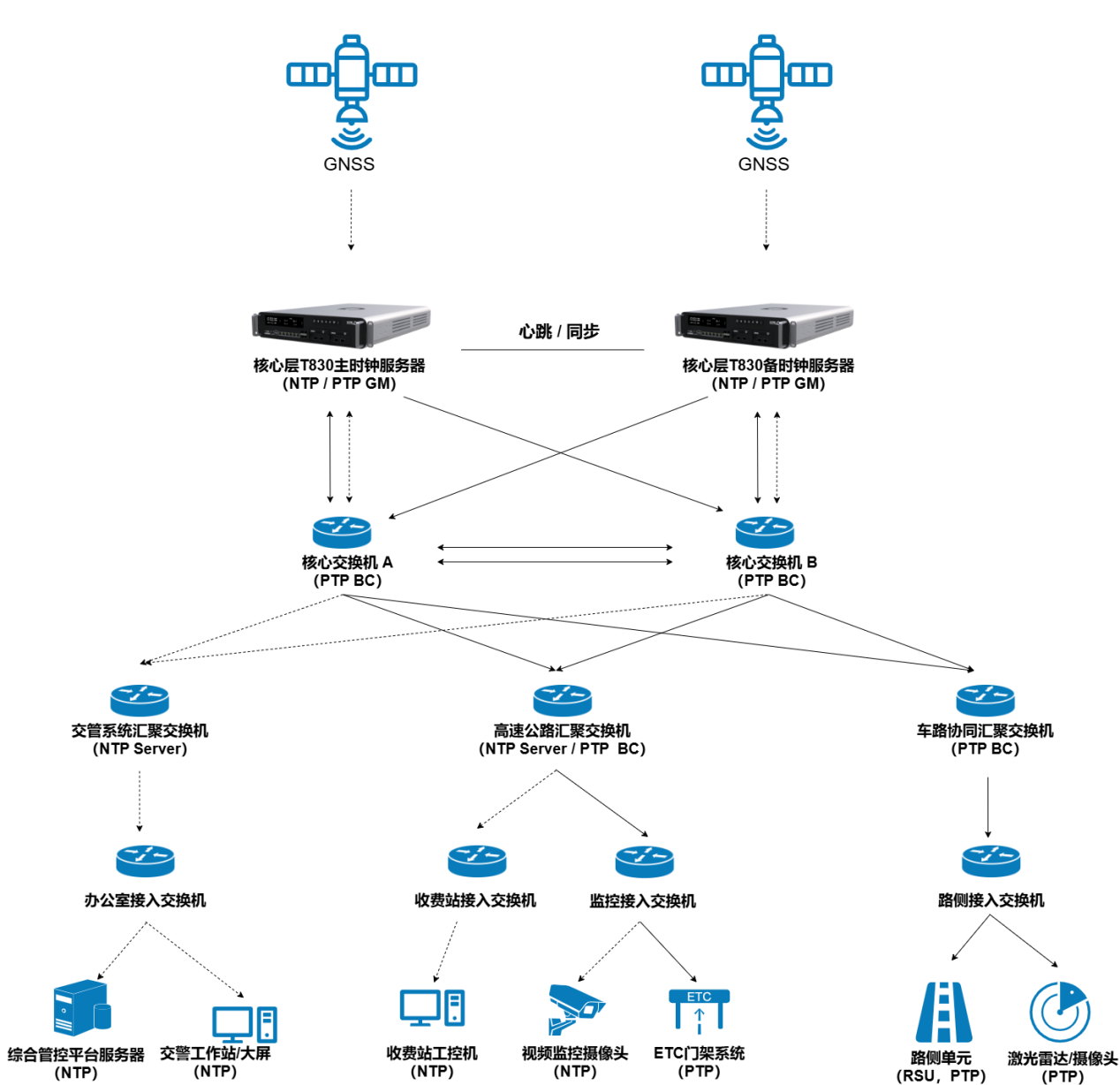

Detailed technical applications

11111111111

Key Technology Highlights

Synchronization and navigation key capabilities

Intelligent Transportation Application Products

T770 Metrology-Grade Atomic Frequency Standard

The T770 is a metrology-grade rubidium atomic frequency standard, offering frequency stability, drift, and temperature coefficient up to 10 times better than ordinary rubidium clocks, and a one-day frequency stability comparable to that of a small cesium clock. It supports 1PPS and GNSS UTC synchronization, uses smooth frequency division to ensure a stable time base, and automatically maintains time in the event of a loss of lock. It features anti-interference algorithms and outputs multiple signals, including 10MHz, 5MHz, 1PPS, and Time of Departure (TOD). Options include 100MHz, 90MHz, and IRIG-B. Its 2U chassis makes it suitable for applications such as ePRTC master clocks, radar, communications, metrology, and aerospace measurement and control.

T760 GNSS Rubidium Atomic Time and Frequency Standard

The T760 is a high-precision GNSS disciplined rubidium atomic frequency standard. It integrates GNSS, a rubidium clock, and a low-phase-noise crystal oscillator, achieving output frequency stability comparable to that of a cesium clock. It supports 1PPS and UTC synchronization and features automatic timekeeping, frequency smoothing, anti-interference, and encryption. It runs a built-in Linux system and is compatible with PTPv2.1, NTP, and SNTP protocols, achieving nanosecond-level network timing accuracy. Housed in a 2U chassis, it supports multiple signal outputs, including 10MHz, 1PPS, IRIG-B, and Time of Departure (TOD).

T710 GNSS Rubidium Atomic Frequency Standard

The T710 GNSS Rubidium Atomic Frequency Standard integrates a GNSS receiver, a Rubidium atomic clock, and a low-phase-noise crystal oscillator. Using digital phase-locking technology, it outputs a high-precision 10MHz frequency signal with frequency stability comparable to that of a standard cesium clock. It supports 1PPS and UTC synchronization, features smooth frequency division and anti-interference capabilities, and automatically switches to the Rubidium clock if GNSS lock is lost. Supporting multiple signal outputs, including 10MHz, 1PPS, and Time of Departure (TOD), it is suitable for high-reliability applications such as radar, communications, power generation, and metrology calibration.

T840 Carrier-Grade Clock Server

Next-generation telecommunications networks and critical infrastructure demand higher accuracy, stability, and scalability in time synchronization. The T840 is a carrier-grade, enhanced grandmaster clock platform that integrates ePRTC, PRTC, SSU, and IEEE 1588v2 grandmaster clock functionality. It supports PTP, NTP, SyncE, and multiple interface protocols, including BITS, IRIG-B, 1PPS, and 10MHz. The T840 features a modular design, synchronization monitoring, and interference mitigation capabilities, allowing for flexible deployment in the core network, aggregation layer, or edge nodes. Combined with built-in Syncprobe™ technology and a multi-source holdover algorithm, the T840 is the most reliable timing investment platform for the transition from traditional to IP networks.

T830 high-performance Clock server

Critical infrastructure demands high-precision, secure, and reliable time synchronization. The T830 is an enhanced grandmaster clock platform compliant with the IEEE® 1588 standard, designed for time-critical applications in industries such as finance, high-frequency trading, computing centers, and military communications. The T830 supports multiple timing modes, including ePRTC, PRTC, PTP, NTP, SyncE, and IRIG-B, and features robust interference detection and anti-spoofing capabilities, ensuring the continuous and stable operation of critical systems in complex network environments. Watch our video about the T830 series.

Explore Beidou Bontec's Innovative Deployment Solutions for Intelligent Transportation

Get the details of solutions such as network-wide unified synchronization, vehicle-road coordination, edge deployment, and local adaptation.
