Medical Time Synchronization Solutions
medical care
Accurate time-frequency guarantees consistency of medical processes and builds a trustworthy and secure smart medical system

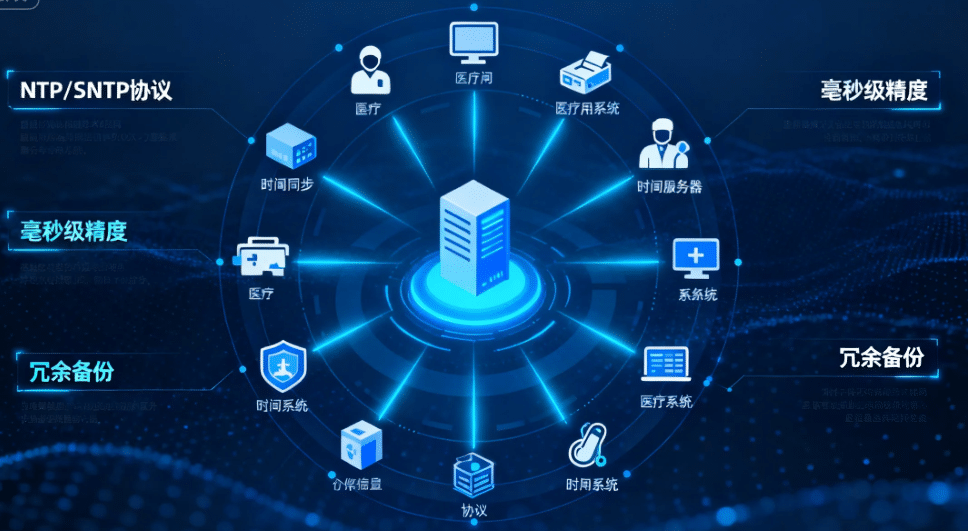

In modern medical information system, time is not only a reference value, but also a "common language" for clinical operation, medical record, equipment linkage and traceability supervision. Through high-precision time synchronization technology (e.g. NTP, PTP, 1PPS, 10 MHz), Beidou Bontec provides uniform and traceable time standards for hospital information platforms, imaging centers, intelligent pharmacies, pharmaceutical automated production lines, etc. The system has redundancy design, disconnected network retention, distributed deployment and traceability control. The system is equipped with redundant design, disconnected network retention, distributed deployment and unified management capabilities to ensure the goal of "equipment timing, record synchronization and behavior traceability" in medical scenarios.
Application Scenario
Hospital information technology equipment time synchronization
Provides unified timing services for core systems such as HIS, LIS, PACS, EMR, etc., ensuring consistent cross-system data timestamps and supporting auditing, patient journey review and legal compliance.
Synchronization of hospital clock display systems
ICU, emergency, operating room, nurses' station, waiting area, etc. adopt unified time display system (network digital clock, LED display), support NTP/IRIG-B signal driver to maintain a unified time image within the hospital.
Pharmaceutical plant automation equipment timing synchronization
Provides millisecond synchronization for pharmaceutical companies' MES systems, filling lines, and quality traceability systems to improve batch tracking and auditing reliability and meet international compliance standards such as GMP and FDA.
Medical Time Synchronization Application Products
T680 PTP/NTP Time Synchronization Server
Modern distributed systems and network architectures place higher demands on high-precision time synchronization. The T680 is a high-performance time synchronization server that integrates PTP and NTP functionality. It supports full GNSS system reception and local clock discipline, features built-in anti-interference detection algorithms, and is compatible with IPv6 and domestic operating systems. Its flexible deployment options, diverse output interfaces, and precise synchronization performance enable it to provide stable, secure, and accurate time services in key sectors such as telecommunications, finance, power generation, and scientific research, meeting current and future high-availability requirements for time synchronization.
T840 Carrier-Grade Clock Server
Next-generation telecommunications networks and critical infrastructure demand higher accuracy, stability, and scalability in time synchronization. The T840 is a carrier-grade, enhanced grandmaster clock platform that integrates ePRTC, PRTC, SSU, and IEEE 1588v2 grandmaster clock functionality. It supports PTP, NTP, SyncE, and multiple interface protocols, including BITS, IRIG-B, 1PPS, and 10MHz. The T840 features a modular design, synchronization monitoring, and interference mitigation capabilities, allowing for flexible deployment in the core network, aggregation layer, or edge nodes. Combined with built-in Syncprobe™ technology and a multi-source holdover algorithm, the T840 is the most reliable timing investment platform for the transition from traditional to IP networks.
T830 high-performance Clock server
Critical infrastructure demands high-precision, secure, and reliable time synchronization. The T830 is an enhanced grandmaster clock platform compliant with the IEEE® 1588 standard, designed for time-critical applications in industries such as finance, high-frequency trading, computing centers, and military communications. The T830 supports multiple timing modes, including ePRTC, PRTC, PTP, NTP, SyncE, and IRIG-B, and features robust interference detection and anti-spoofing capabilities, ensuring the continuous and stable operation of critical systems in complex network environments.
Watch our video about the T830 series.
T600-BDOCXO NTP Time Synchronization Solution
The T600-BDOCXO is a high-precision, secure, and redundant enterprise-class NTP network time server. It utilizes dual GPS/Beidou reference sources and a built-in high-performance oven-controlled crystal oscillator (OCXO), combined with an embedded Linux system and a modular architecture, to achieve nanosecond-level synchronization accuracy and a 24-hour holdover of <10μs. Featuring six independent Ethernet interfaces, a robust anti-interference detection algorithm, multiple secure encryption protocols (MD5/SSL/certificate), and compatibility with IPv4/IPv6 protocols, it is widely used in government, defense, finance, energy, and other sectors requiring the highest levels of time accuracy and security.
T600-BD NTP Time Synchronization Solution
Modern networks place higher demands on accurate, secure, and controllable time synchronization. The T600-BD NTP Time Synchronization Solution, built on an embedded hardware platform, integrates dual GNSS reference sources, a high-performance industrial motherboard, and a Linux system. It supports multi-protocol and high-concurrency timing (NTP/SNTP). It not only offers microsecond-level timing accuracy and support for millions of clients, but also provides a rich set of interfaces and flexible redundancy deployment capabilities, building a stable and reliable time infrastructure for various industries.
