TCA55 Localization Chip level Atomic clock
Learn about our Localization Chip level Atomic clock
The CA55 is a domestically produced chip-level atomic clock based on the CPT principle, offering advantages such as low power consumption, compact size, and fast startup. Suitable for operating temperatures from -40°C to +85°C, it provides CMOS-level 10MHz and 1PPS outputs, boasting short-term stability better than 3E-10/1s, daily drift better than 3E-11, and monthly aging less than 5E-10. It supports external calibration using 1PPS or analog voltage, making it suitable for applications such as navigation, communications, unmanned equipment, marine geophysical exploration, and instrumentation.
Learn about our Localization Chip level Atomic clock
The CA55 is a domestically produced chip-level atomic clock based on the CPT principle, offering advantages such as low power consumption, compact size, and fast startup. Suitable for operating temperatures from -40°C to +85°C, it provides CMOS-level 10MHz and 1PPS outputs, boasting short-term stability better than 3E-10/1s, daily drift better than 3E-11, and monthly aging less than 5E-10. It supports external calibration using 1PPS or analog voltage, making it suitable for applications such as navigation, communications, unmanned equipment, marine geophysical exploration, and instrumentation.
Important Features
- Operating temperature range -40℃ ~+85℃
- The short-term stability is better than the 8E-11/1s

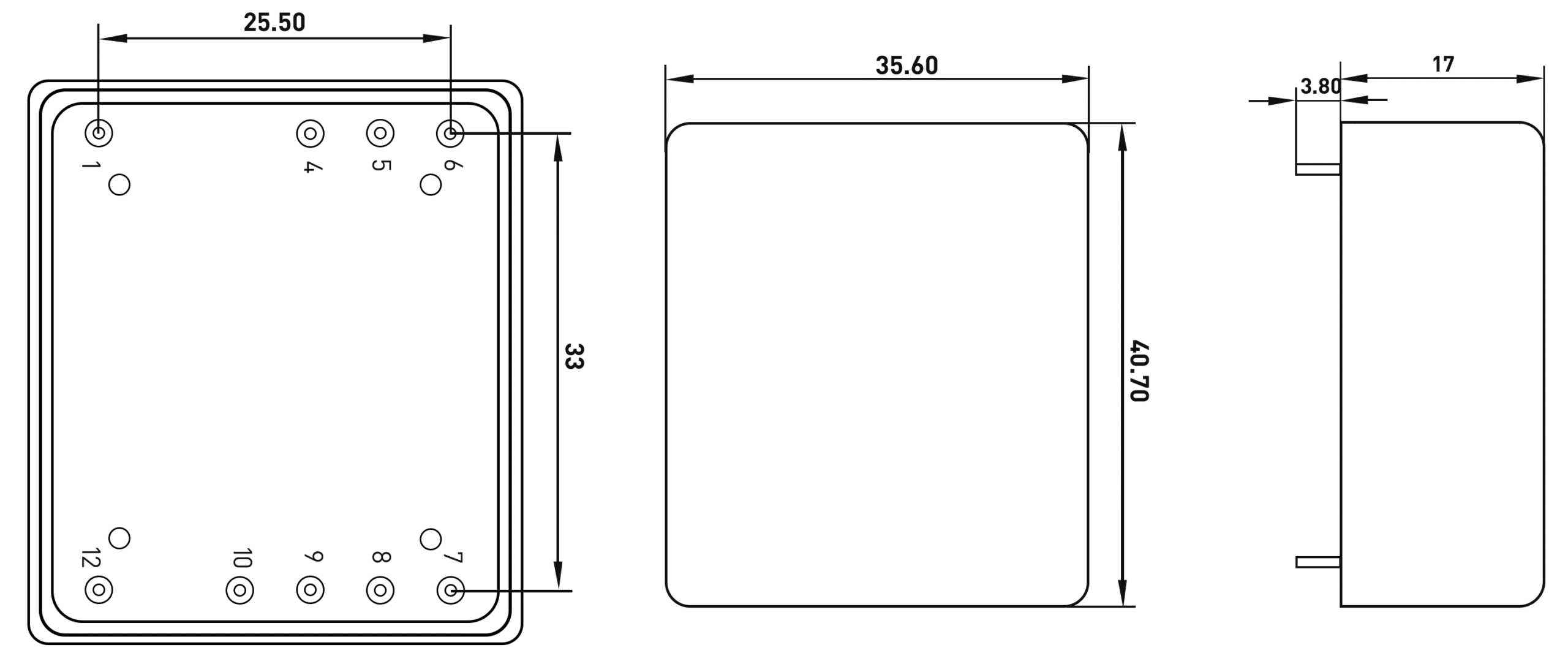

- Small size, size of 41×36×17mm
- Low power consumption, stable power consumption at room temperature <1.8W
- Appearance and installation dimensions compatible with SA.45s
- Accepts external 1PPS discipline and analog voltage calibration
Important Features

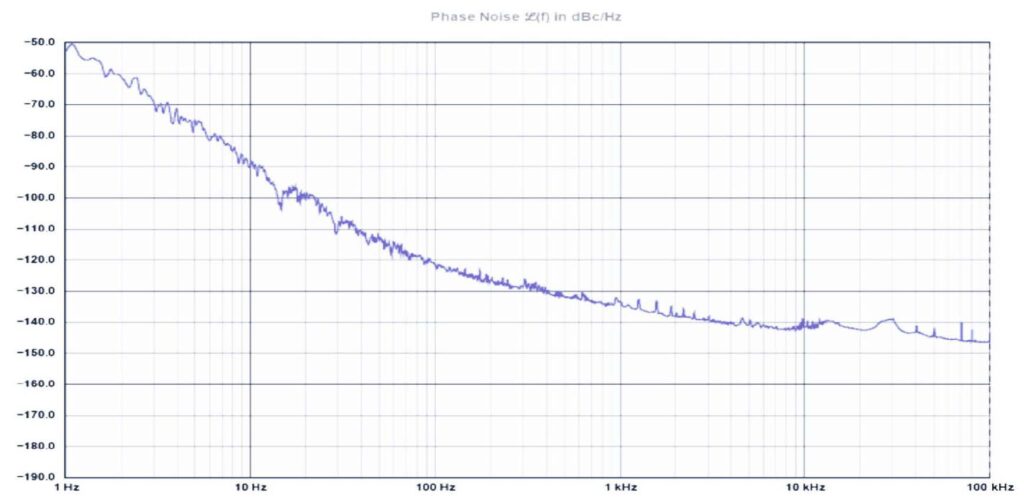

Typical phase noise

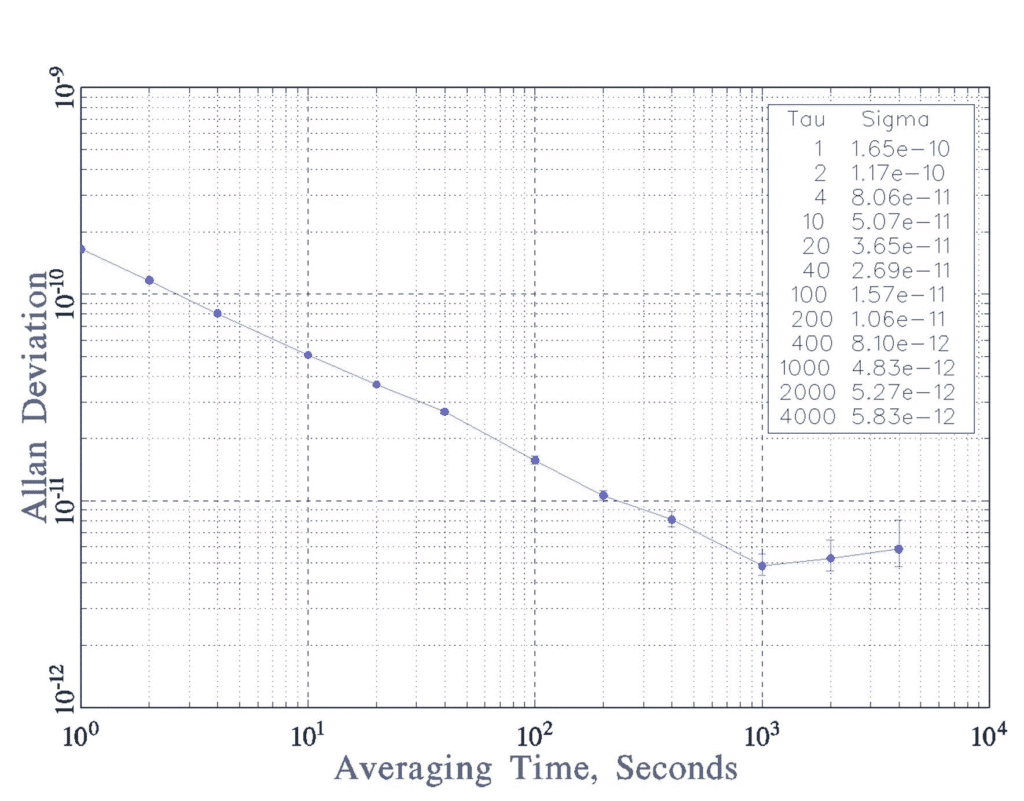

Frequency stability typical value
